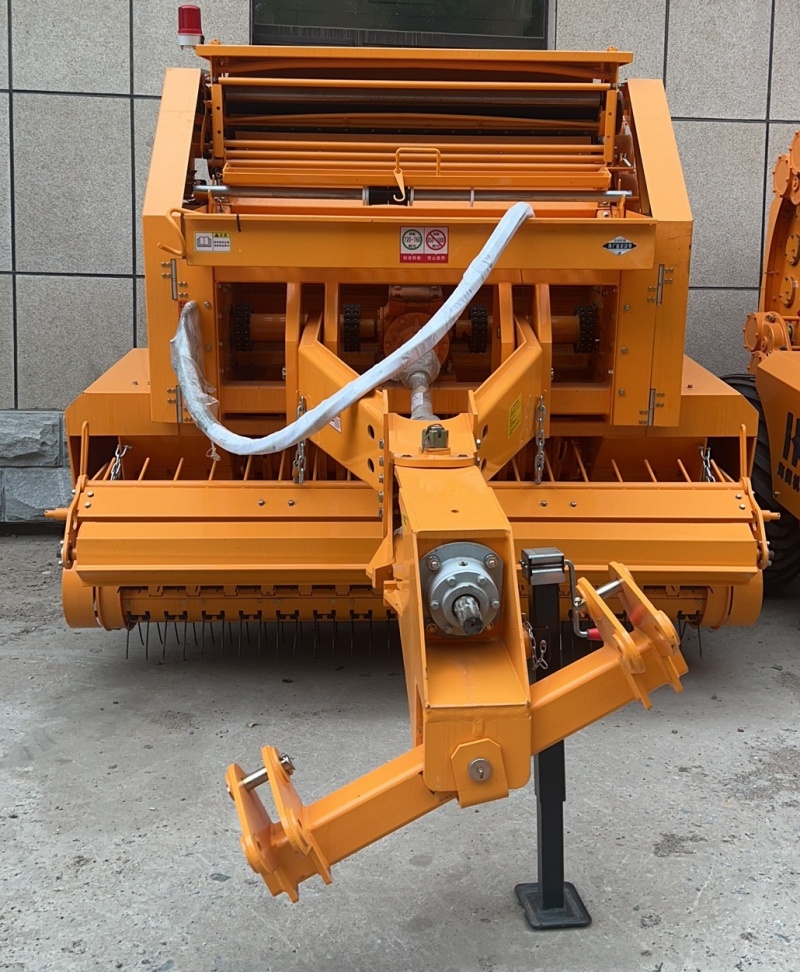

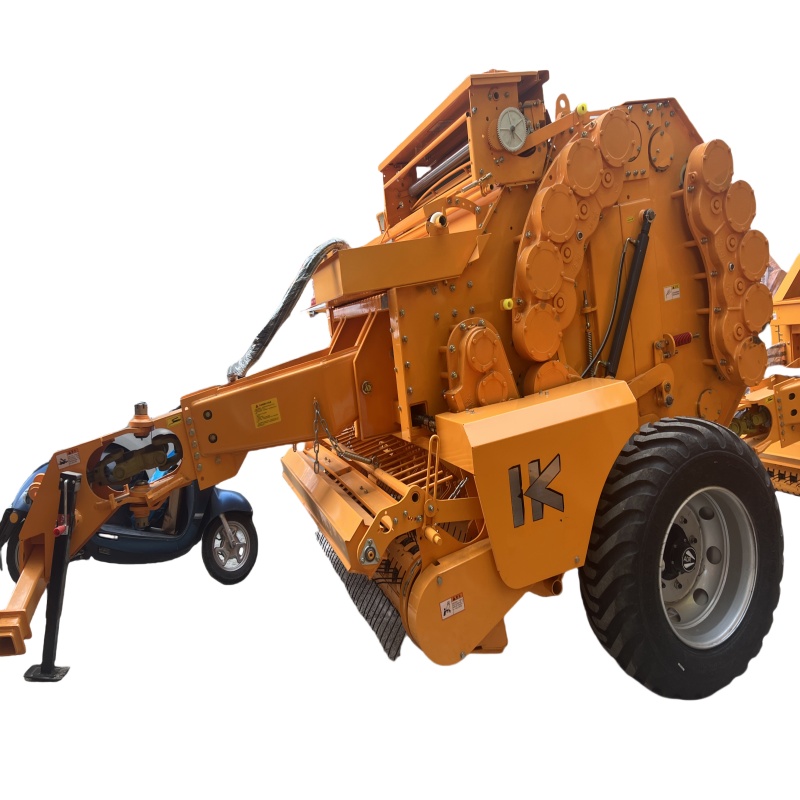

Our round baler is full gear rather than the chain. Maintenance free!
Our warranty time is 3 years or 100000 bundles. We are the only factory who owns the patent all over the world. You do not need to replace the chain anymore. It can save your time and money greatly!
Technical data is listed as following.
1. Model No.: 9YH-1.25A6
Auxiliary Power: 160HP-240HP
Driving Method: Power shaft output
Hooking Method : Traction type
Binding Method : Entanglement net
Working Speed: 6-12km/h
Bale Diameter: 1250mm
Bale Length: 1250mm
Pickup Width: 2200mm
Pickup Structure Type: Tine type
Structural Type of Feeder: Rotor type
Number of Rolling Work Components: 18PCS
Size: 4370x2800x2370mm
2. Model No.: 9YH-1400
Auxiliary Power: 160HP-240HP
Driving Method: Power shaft output
Hooking Method : Traction type
Binding Method : Entanglement net
Working Speed: 6-12km/h
Bale Diameter: 1250mm
Bale Length: 1400mm
Pickup Width: 2200mm
Pickup Structure Type: Tine type
Structural Type of Feeder: Rotor type
Number of Rolling Work Components: 18PCS
Size: 4370x2800x2370mm
