Model No.: LZFQLD2500
Engine: Weifang 4102 supercharging
Power: 76kw
Size: 4900x1800x2700mm
Tare weight: 3540kg
Engineering wear-resistant steel wire rubber track: (400/90/56)
Drive: rear axle drive
Maximum walking speed: 40km/h
High and low speed: pneumatic adjusment
Diesel tank: 40L
Voltage: 24V
Mixing drum capacity: 2.7m3
Filling ratio:0.67
Discharge speed: ≥1m3/min
Mixing drum rotating speed: ≤0-14r/min
Feeding ground clearance: 2650mm
Person: 2
Mixing drum geometric capacity: 4.2m3
Discharge capacity: 2.5m3
Feeding speed: ≥3m3/min
Discharge residual rate: ≤1.0%
Minimum height of the outlet: 1.0m
The cabin is optional. ( simple or fully closed)

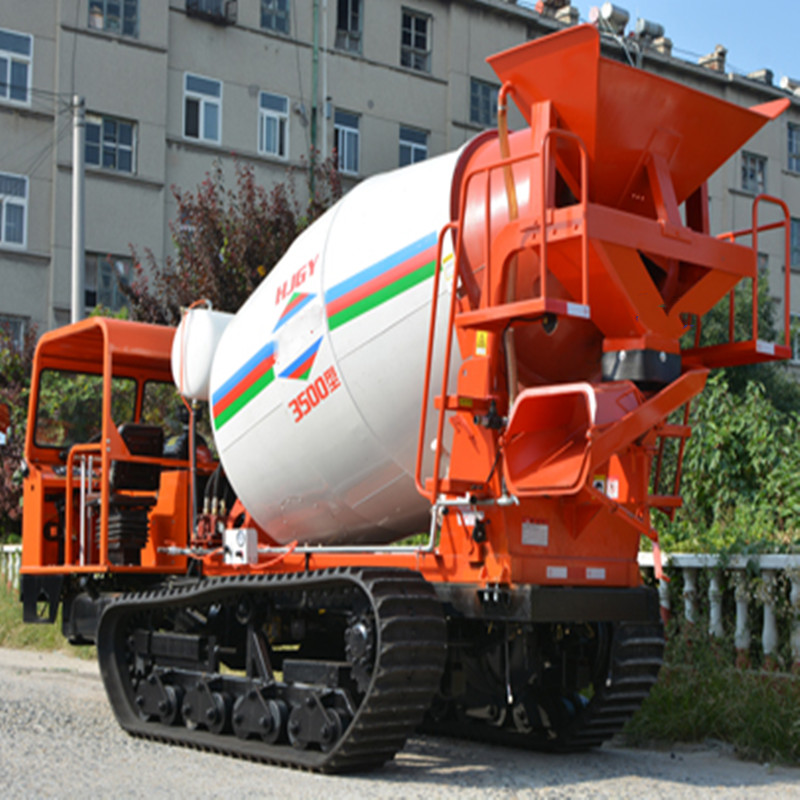

Model No.: LZFQLD3500
Engine: Changfa 4102 supercharging
Power: 78kw
Size: 5100x2200x2850mm
Tare weight: 4000kg
Engineering wear-resistant steel wire rubber track: (400/90/70)
Drive: rear axle drive
Maximum walking speed: 40km/h
High and low speed: pneumatic adjusment
Diesel tank: 40L
Voltage: 24V
Mixing drum capacity: 3.5m3
Filling ratio:0.67
Discharge speed: ≥1m3/min
Mixing drum rotating speed: ≤0-14r/min
Feeding ground clearance: 2780mm
Person: 2
Mixing drum geometric capacity: 4.8m3
Discharge capacity: 3m3
Feeding speed: ≥3m3/min
Discharge residual rate: ≤1.0%
Minimum height of the outlet: 1.0m
The cabin is optional. ( simple or fully closed)
Model No.: LZFQLD4500
Engine: Yuchai 4102 supercharging
Power: 91kw
Size: 5500x2200x3150mm
Tare weight: 5470kg
Engineering wear-resistant steel wire rubber track: (450/90/70)
Drive: rear axle drive
Maximum walking speed: 40km/h
High and low speed: pneumatic adjusment
Diesel tank: 90L
Voltage: 24V
Mixing drum capacity: 4.5m3
Filling ratio:0.67
Discharge speed: ≥1m3/min
Mixing drum rotating speed: ≤0-14r/min
Feeding ground clearance: 3100mm
Person: 2
Mixing drum geometric capacity: 6.2m3
Discharge capacity: 4m3
Feeding speed: ≥3m3/min
Discharge residual rate: ≤1.0%
Minimum height of the outlet: 1.0m
The cabin is optional. ( simple or fully closed)
