  • 2WD Concrete Mixer Truck (From 3.5m3 to 5m3)

2WD Concrete Mixer Truck (From 3.5m3 to 5m3)

  • LZFQ3500-2WD, LZFQ4500-2WD, LZFQ5000-2WD

technical data.jpg

This is a 2 wheel drive concrete mixter truck. It is very poular for the lower price and the high capacity.

Model No.: LZFQ3500-2WD

Engine: Yunei 4100

Power: 52kw

Tare weight:4200kgs

Size: 5400x2100x2900mm

Braking method: air brake

High and low sped: pneumatic adjustment

Person: 2

Drum capacity: 3.5m3

Filing ratio:0.67

Output speed: ≥1m3/min

Mixing drum rotating speed: ≤0-14/min

Wheelbase: 2650mm

Tire: 750-16 ridial, 6 wheel

Driving axle: front 1041, rear 1069

Maximum walking speed: 70km/h

Diesel tank: 70L

Voltage: 24V

Mixing drum geometric capacity: 5.3m3

Discharge capacity: 3m3

Feeding speed: ≥3m3/min

Discharge residual ratio: ≤1.0%

Minimum height of the outlet: 1.0m

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling


Model No.: LZFQ4500-2WD

Engine: Yuchai 4102 supercharging

Power: 81kw

Tare weight:4900kgs

Size: 6800x2200x2980mm

Braking method: air brake

High and low sped: pneumatic adjustment

Person: 2

Drum capacity: 4.5m3

Filing ratio:0.67

Output speed: ≥1m3/min

Mixing drum rotating speed: ≤0-14/min

Wheelbase: 3200mm

Tire: 825-16 ridial, 6 wheel

Driving axle: front 1041, rear 145

Maximum walking speed: 72km/h

Diesel tank: 60L

Voltage: 24V

Mixing drum geometric capacity: 6.2m3

Discharge capacity: 4m3

Feeding speed: ≥3m3/min

Discharge residual ratio: ≤1.0%

Minimum height of the outlet: 1.0m

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling


Model No.: LZFQ5000-2WD

Engine: Yuchai 4102 supercharging

Power: 81kw

Tare weight:4900kgs

Size: 6800x2200x2980mm

Braking method: air brake

High and low sped: pneumatic adjustment

Person: 2

Drum capacity: 5.0m3

Filing ratio:0.67

Output speed: ≥1m3/min

Mixing drum rotating speed: ≤0-14/min

Wheelbase: 3200mm

Tire: 825-16 ridial, 6 wheel

Driving axle: front 1041, rear 145

Maximum walking speed: 72km/h

Diesel tank: 60L

Voltage: 24V

Mixing drum geometric capacity: 6.7m3

Discharge capacity: 4.5m3

Feeding speed: ≥3m3/min

Discharge residual ratio: ≤1.0%

Minimum height of the outlet: 1.0m

The following parts are optional:

  1. Quantitative automatic water supply (timing, remote control)

  2. Brake water cooling

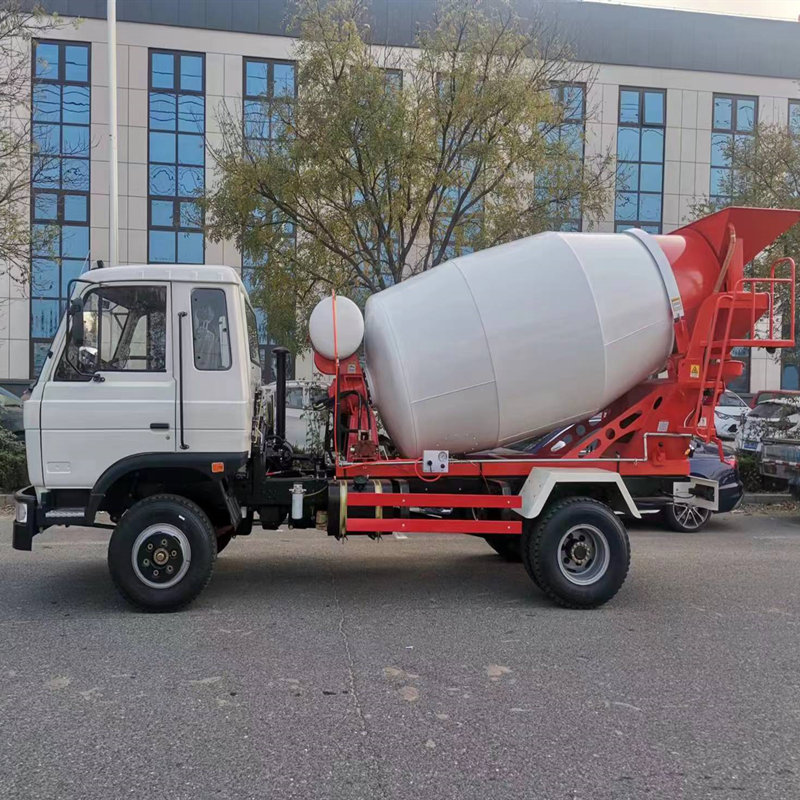

concrete mixer truck for sale 1.jpg

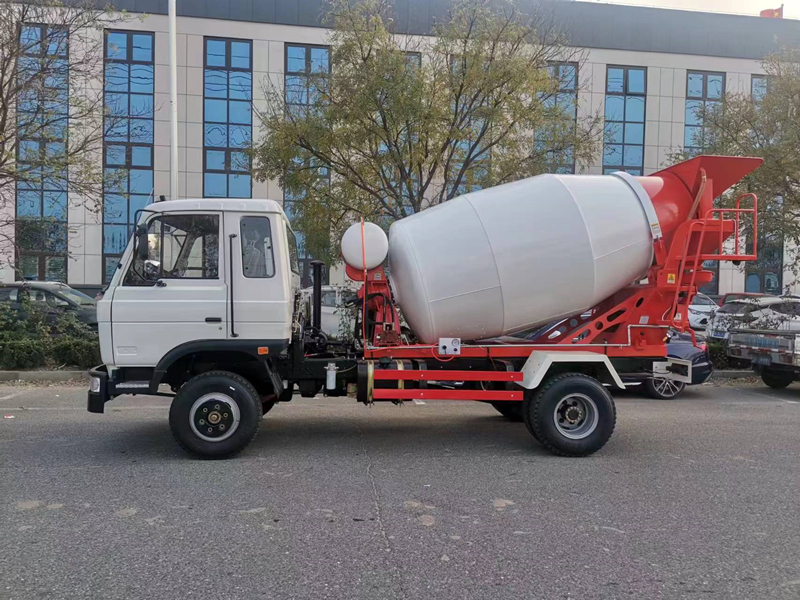

concrete mixer truck for sale 2.jpg

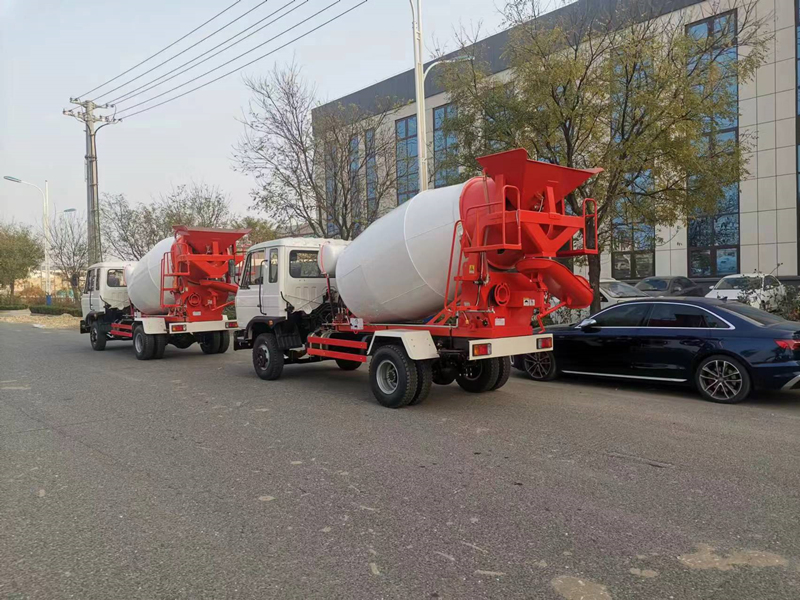

concrete mixer truck for sale 3.jpg

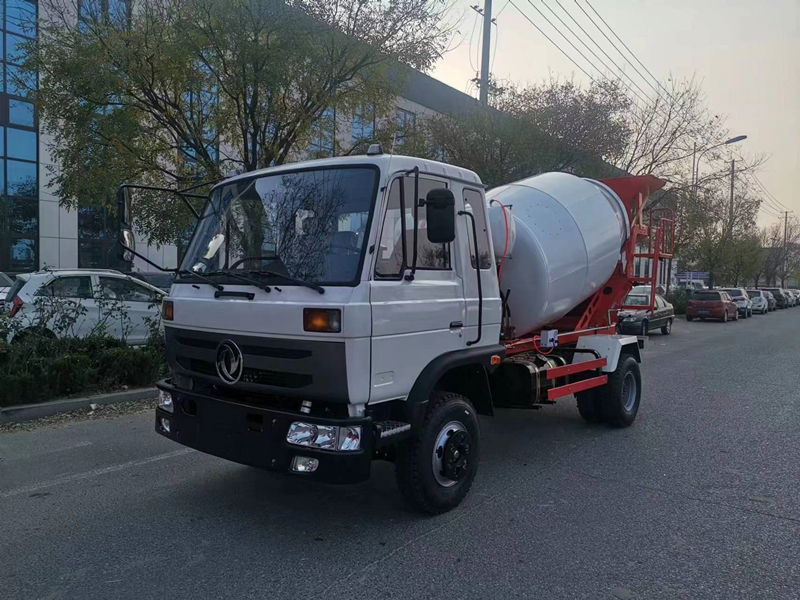

concrete mixer truck for sale 4.jpg
