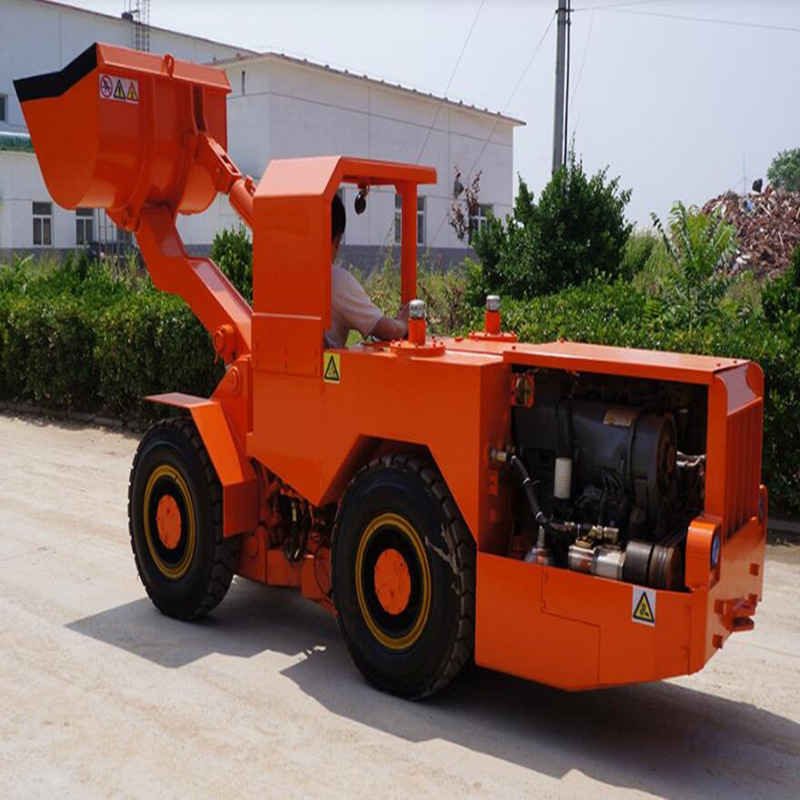

  • Diesel Scooptram TXC-0.5

Diesel Scooptram TXC-0.5

  • Model No.: TXC-0.5


Mode No.: TXC-0.5

Size:4880x1100x1825mm (shipping status)

Rated load weight: 1t

Bucket capacity: 0.5-0.6m3

Empty weight: 4.5t

Shovel pickup force: 20kn

Tractive force: 20kn

Power: 37kw

Speed (full loading): 0-13kw/h (two way)


The ultra-small LHD is especially suitable for mining in narrow and low roadways and difficult-to-mine areas.

The closed hydrostatic and continuously variable speed driving system composed of variable piston pump and variable piston motor is adopted, which ensures stable and comfortable operation and high production efficiency;

Wheel-type central hinge structure, good transition passability;

The method of spring braking and hydraulic release, which integrates work, parking and emergency braking, is safer and more reliable.
