  • Self Loading Concrete Mixer LZ7500 (7.5m3)

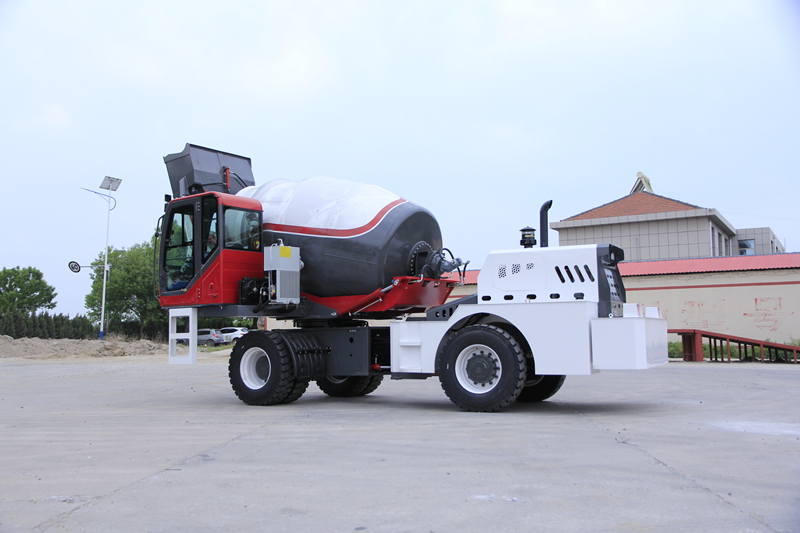

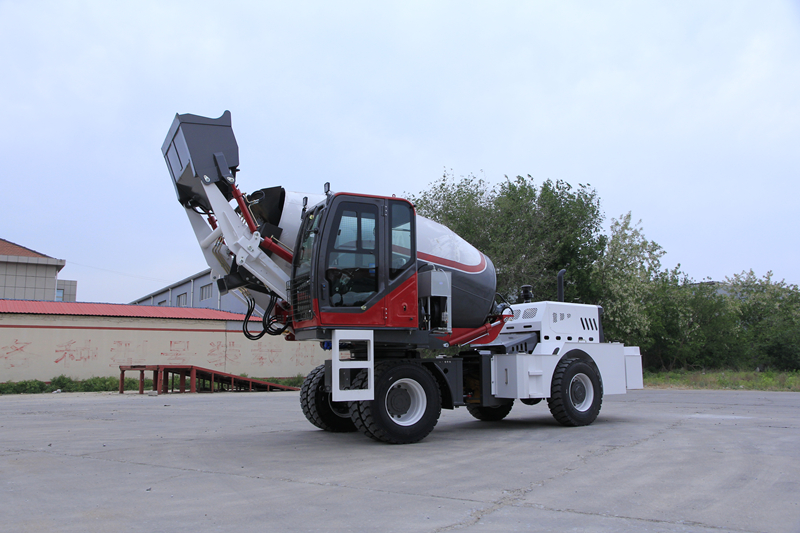

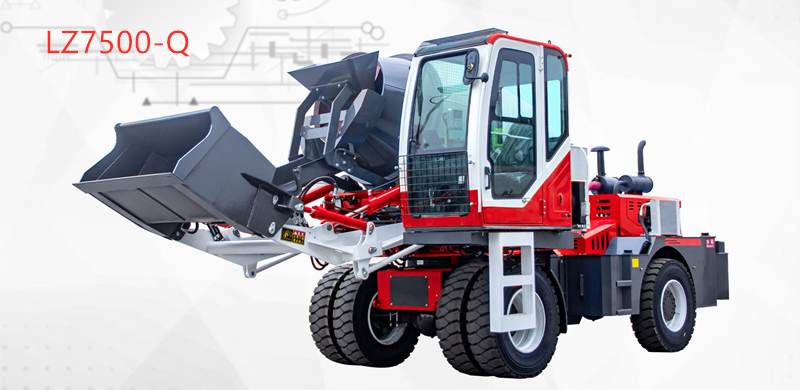

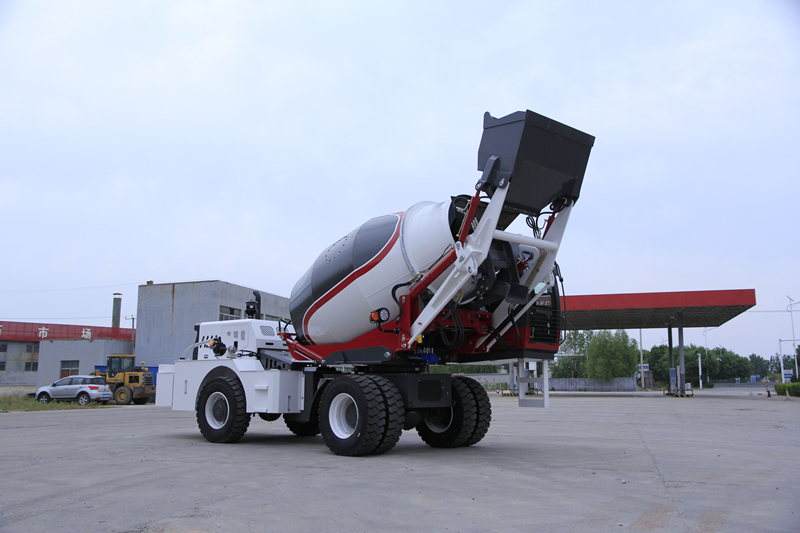

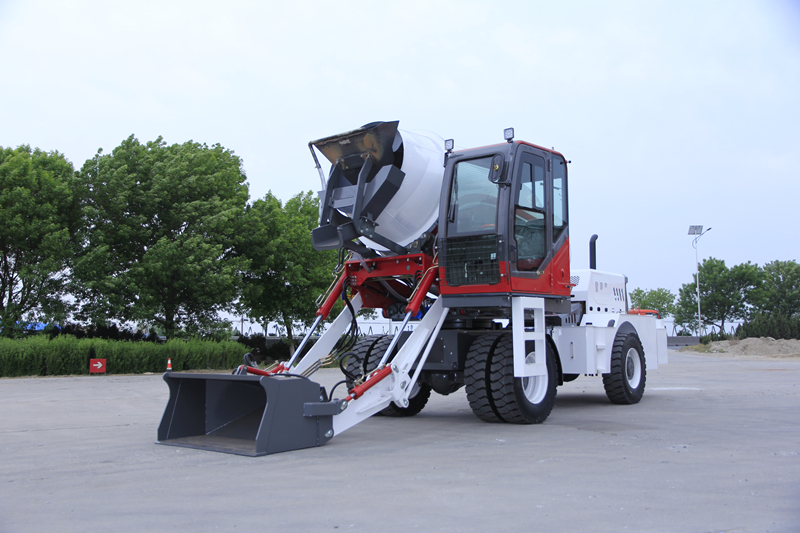

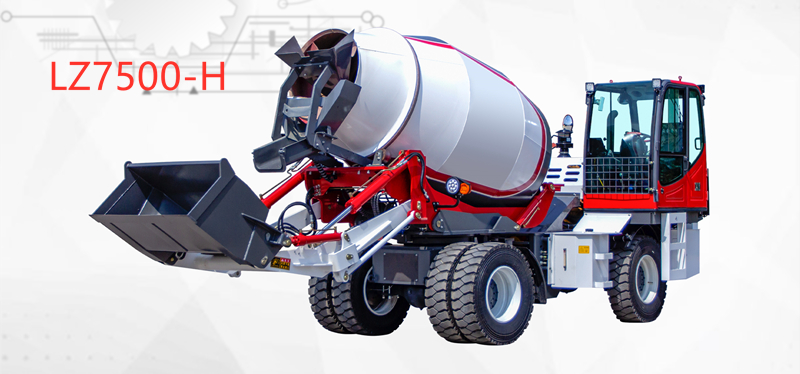

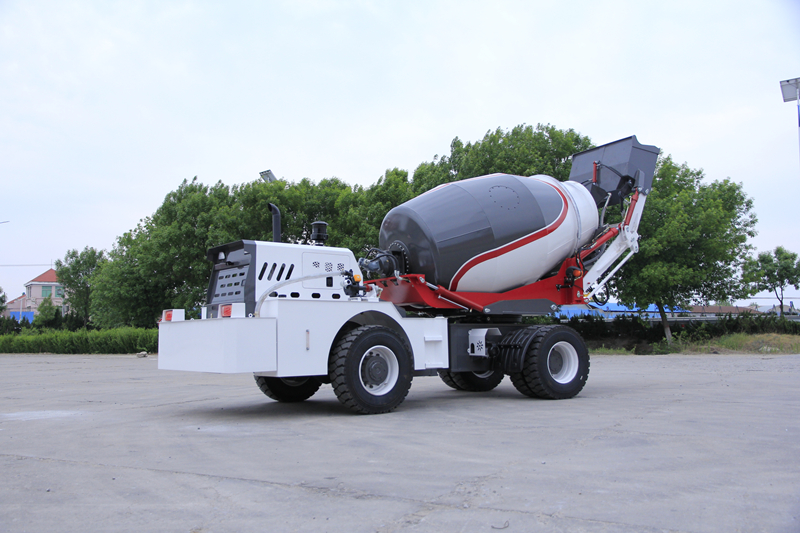

Self Loading Concrete Mixer LZ7500 (7.5m3)

  • Model No.: LZ7500


What is the feature and characteristic of our self loading concrete mixer?

1. Italian technology with improvement provides stable quality and low malfunction rate.

2. The mixing drum uses wear resistant alloy steel for longer service life.

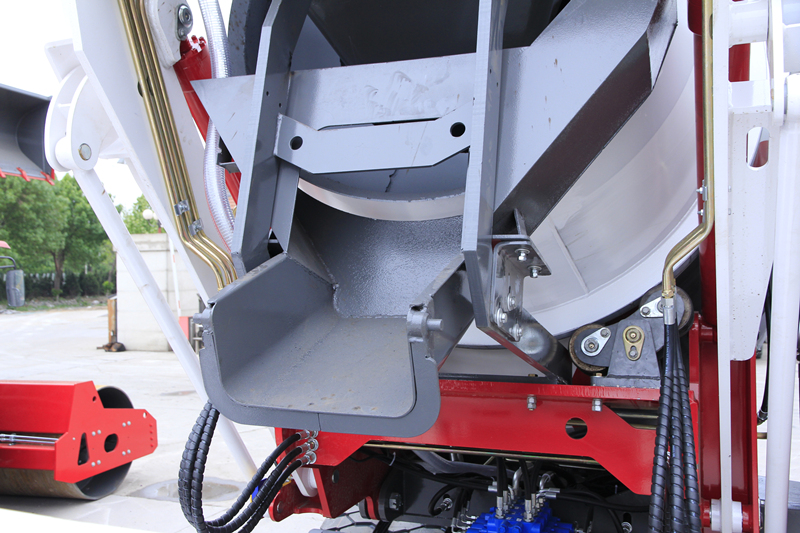

3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.

4. Together with the high accuracy electric weighting unit, it can supply various types of qualified concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.

5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.

6. Self loading concrete mixers adopt 4x4 driving system and off road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.

7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete. Its capacity is up to 200 cbm per day.

8. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of 4-6 workers.

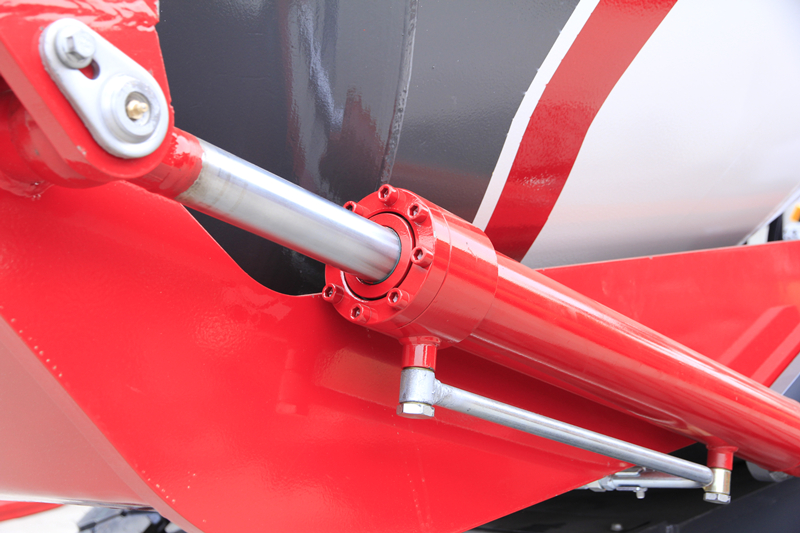

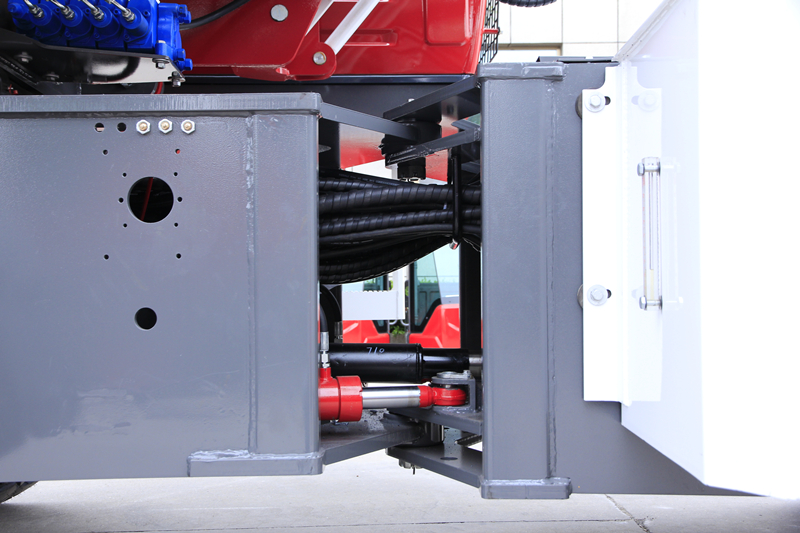

9. Easy operation. The extensive use of hydraulic system makes it easy to operate.

10. Our brand is named chinese famous brand.

11. We have already produced the self loading concrete mixers for more than 20 years.

12. Our factory is the biggest manufacturer of self loading concrete truck in China.

13. We have 17 patents for our self propelled concrete mixer.

14. Two way driving.Technical Parameters.jpg

Mode No.: LZ7500

Size: 6900x2950x3600mm

Wheelbase: 3200mm

Weight: 12500kg

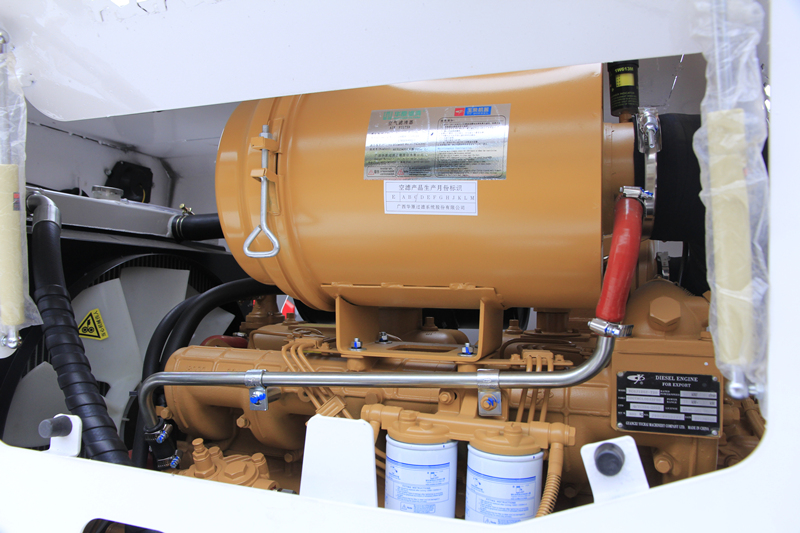

Engine: Yudong 6105 supercharged

Power (KW): 92

Gearbox: 315 sperarated type

Drive axle: front bridge 30S wet axle/ rear axle 30

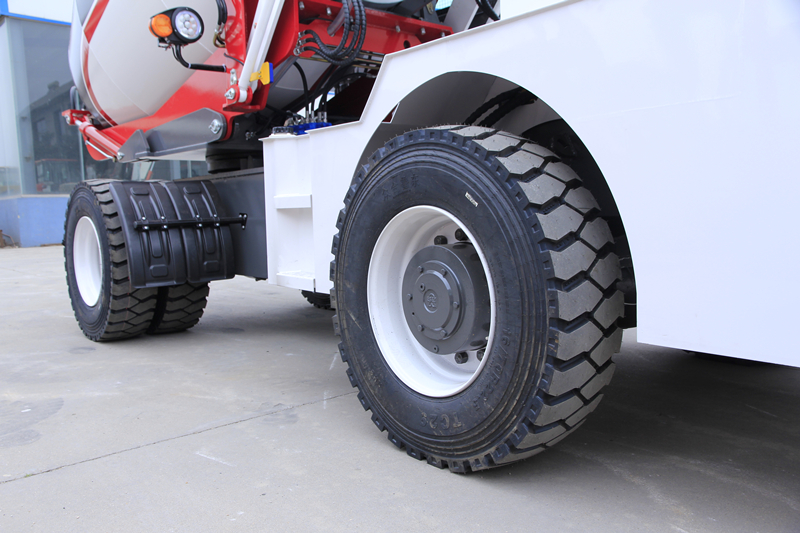

Tyre: Front 4/ back 2, 16/70-R22.5

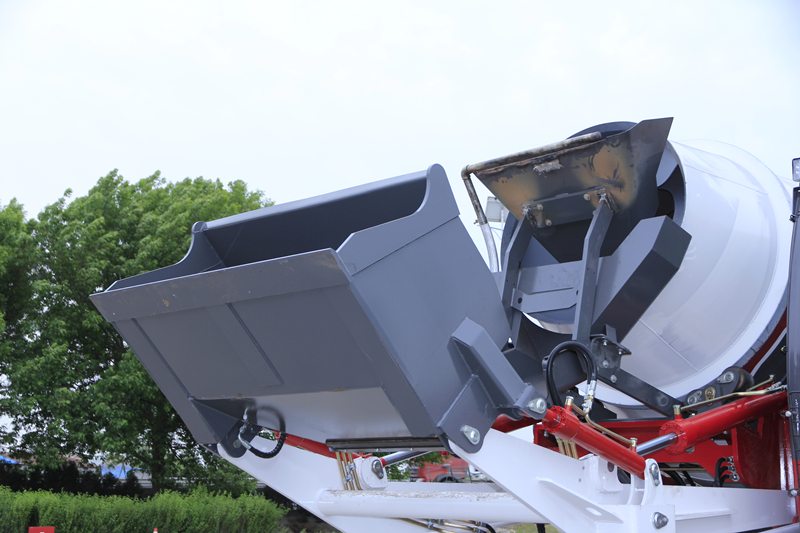

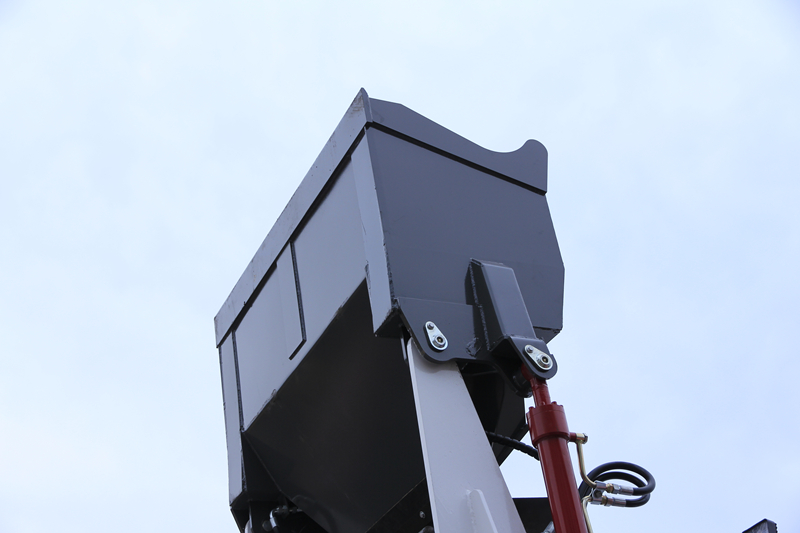

Bucket capacity: 0.7m3

Mixing drum capacity: 7.5m3

Discharge capacity: 5m3

Reduction ratio: 1:103

Rotation speed: ≥15 rpm

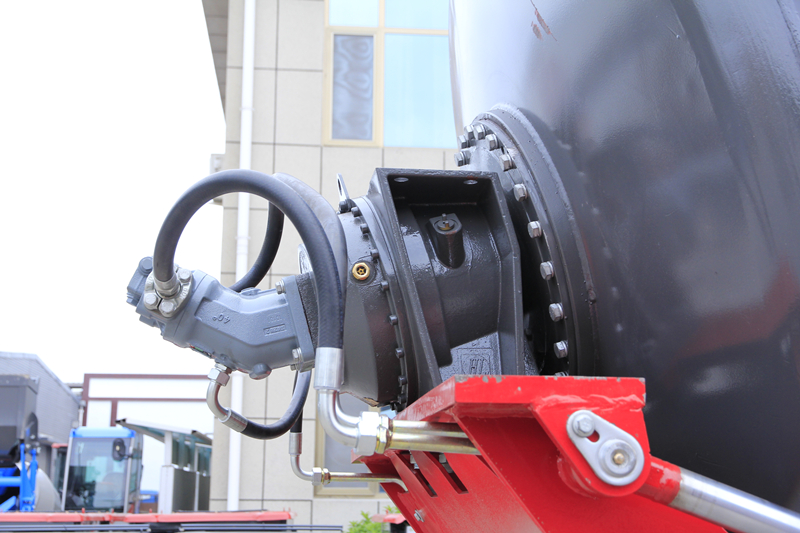

Reducer: HL6F-B2700 domestic

Optional equipment:

1.Cement hopper

2.Air conditioner.

3.High  pressure car wash

4.Hydrualic electronic scale

5. Two way driving.

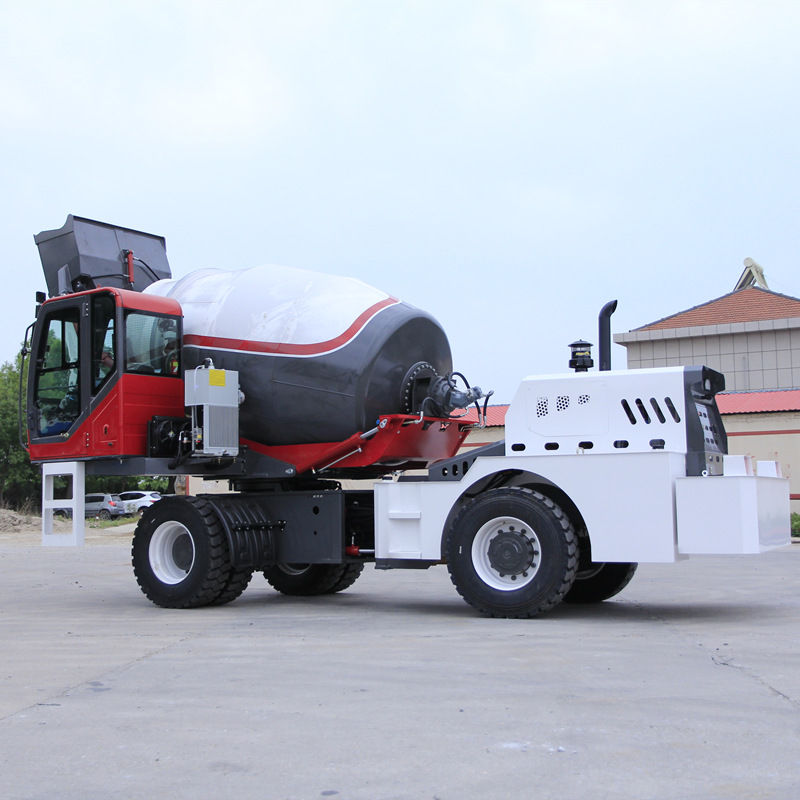

6. Cabin in the front or in the rear

















tour our factory.jpg

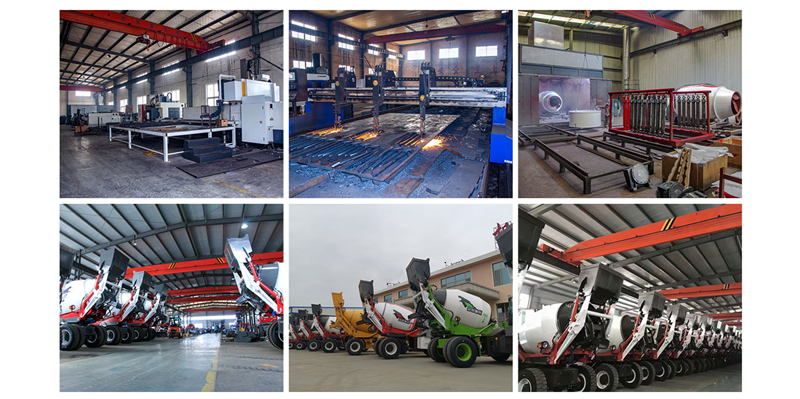

self loading concrete mixer workshops.jpg
