  • Self Loading Concrete Mixer LZ5500 (5.5m3)

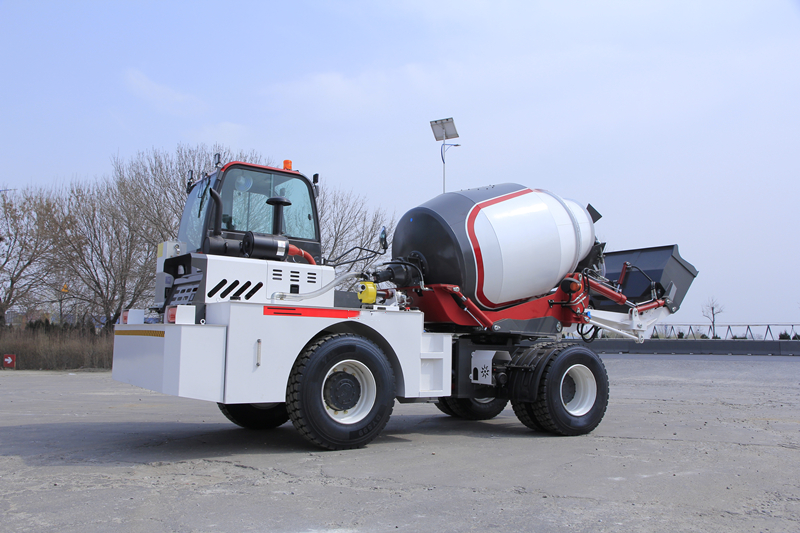

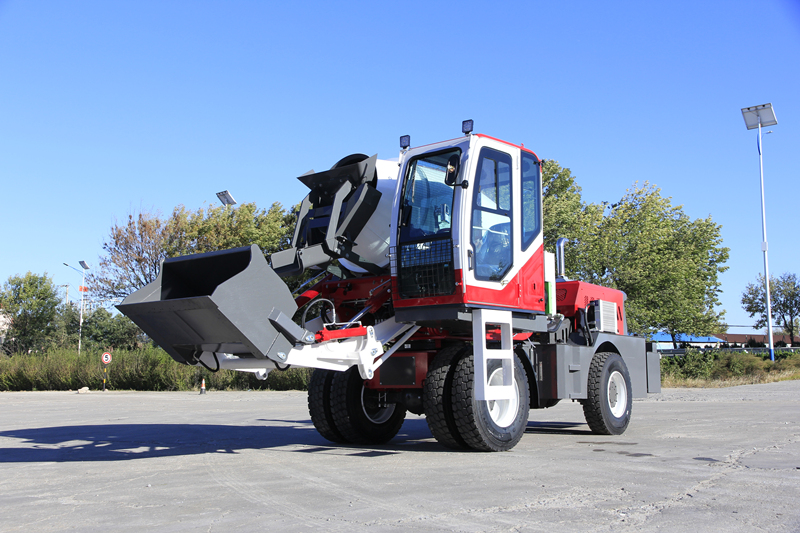

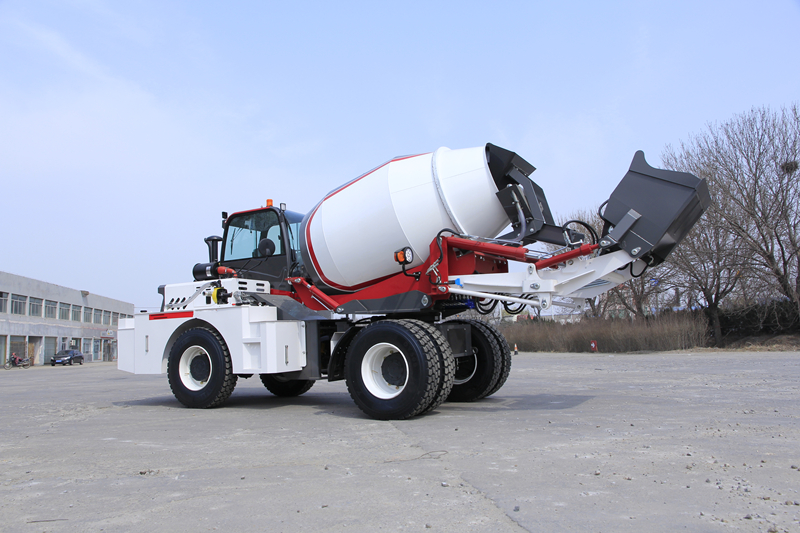

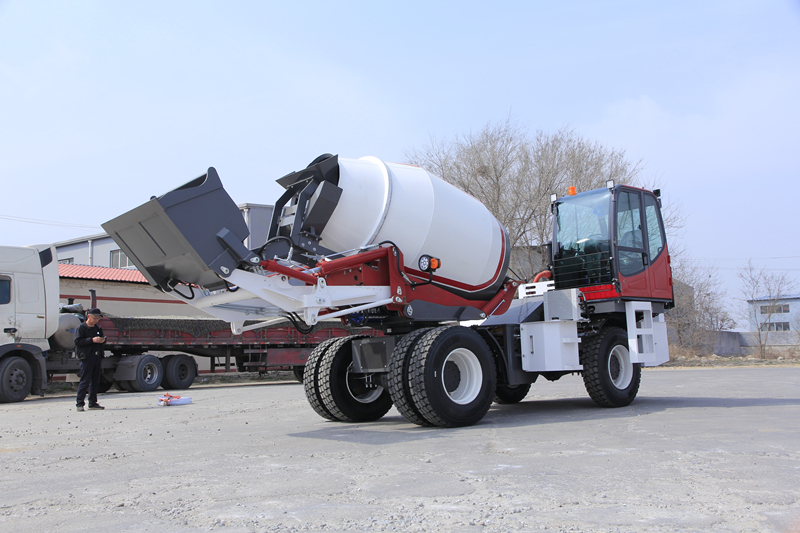

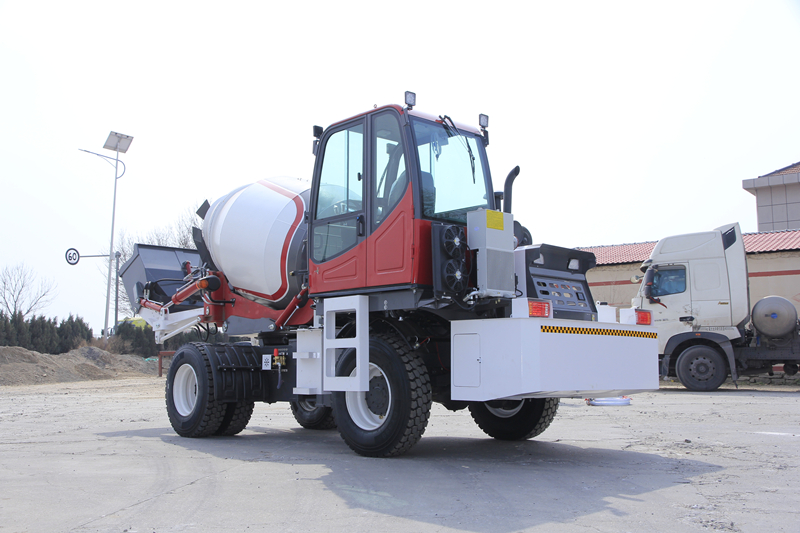

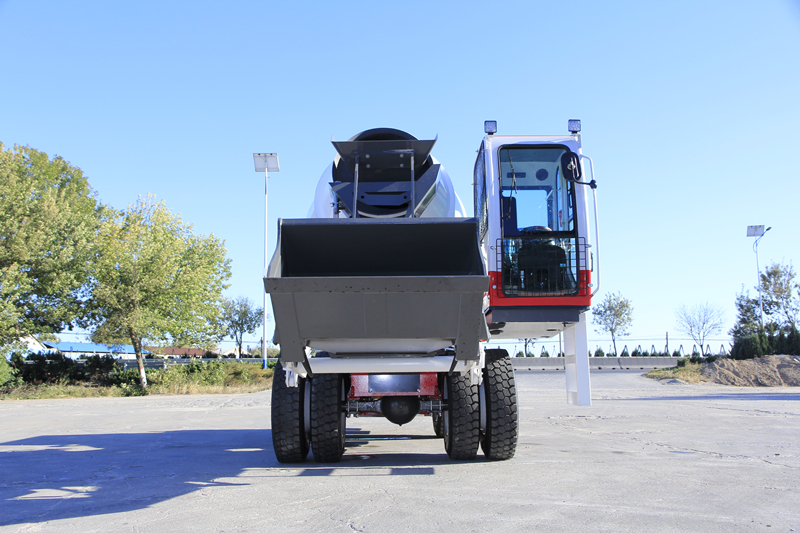

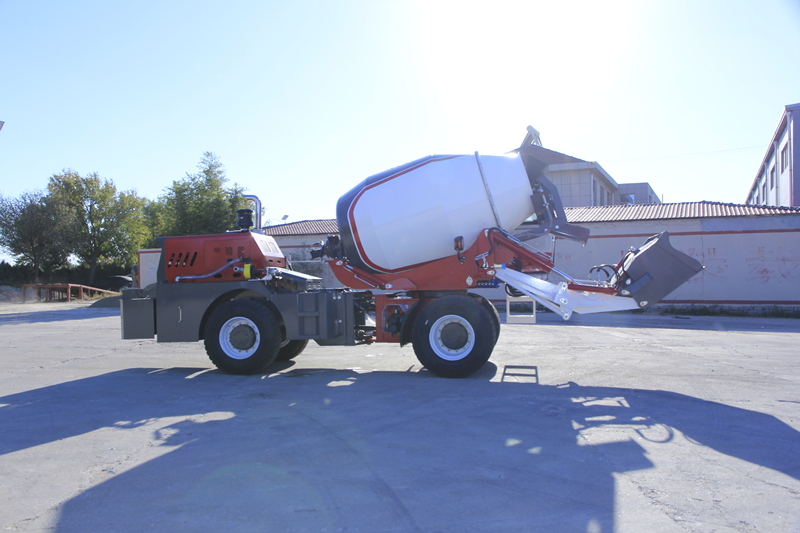

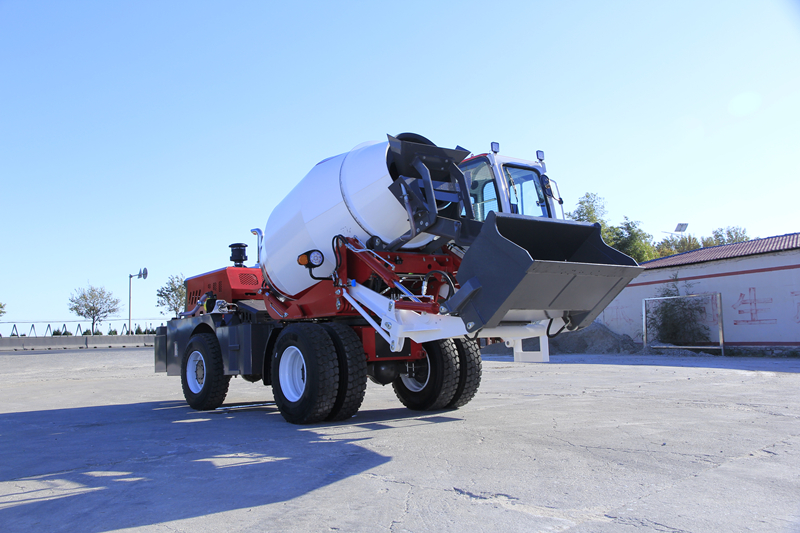

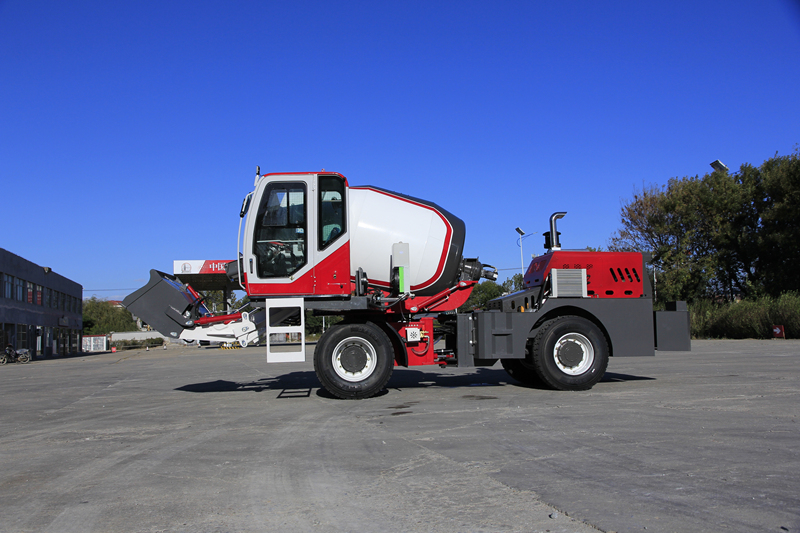

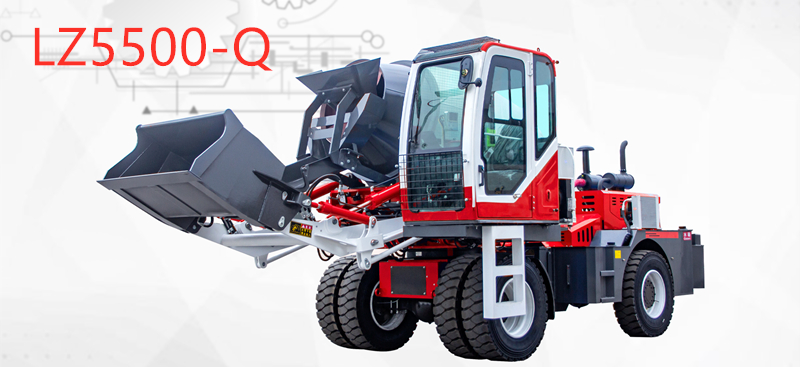

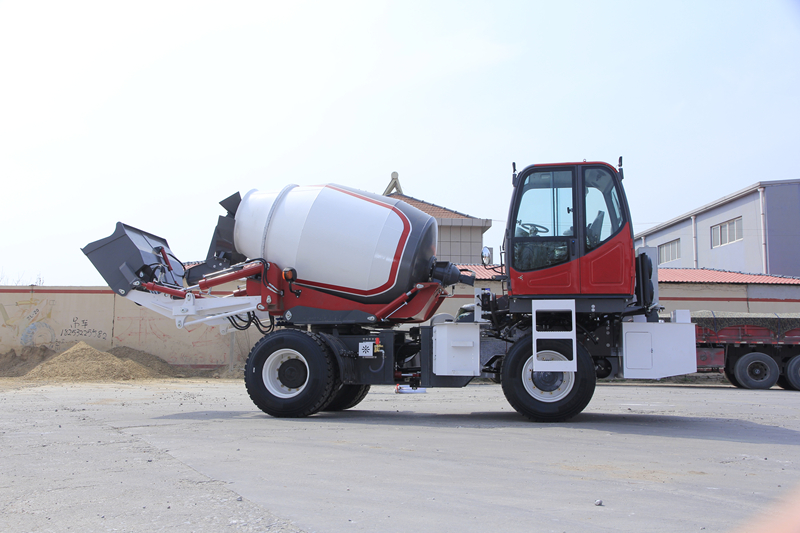

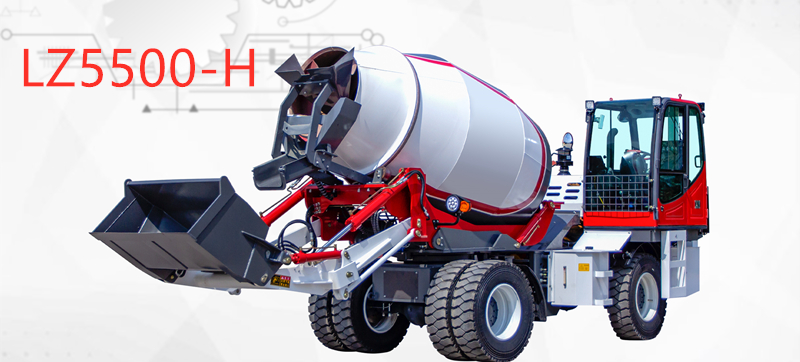

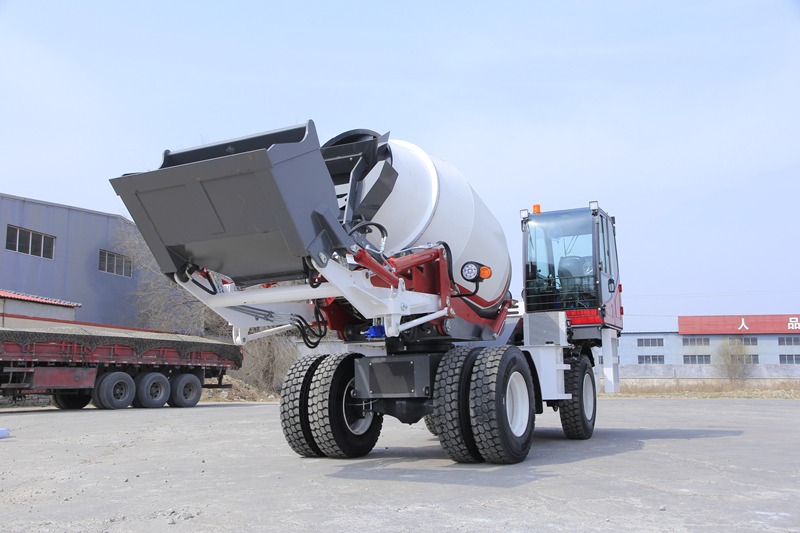

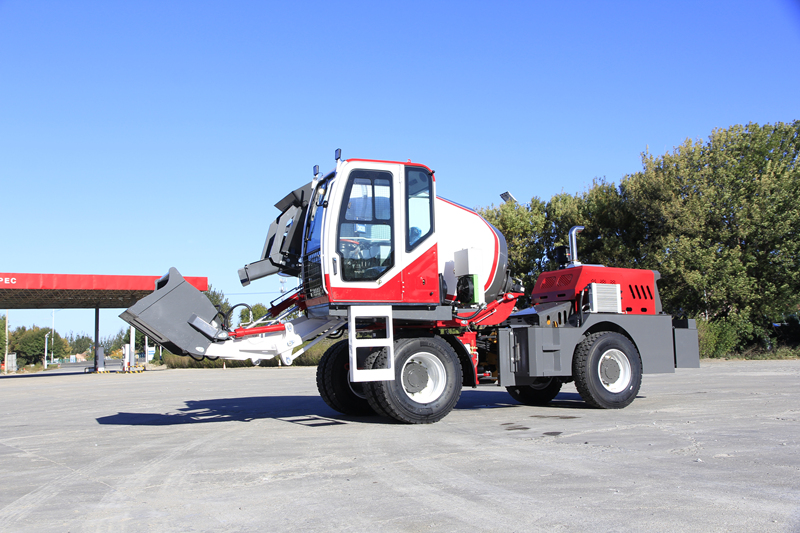

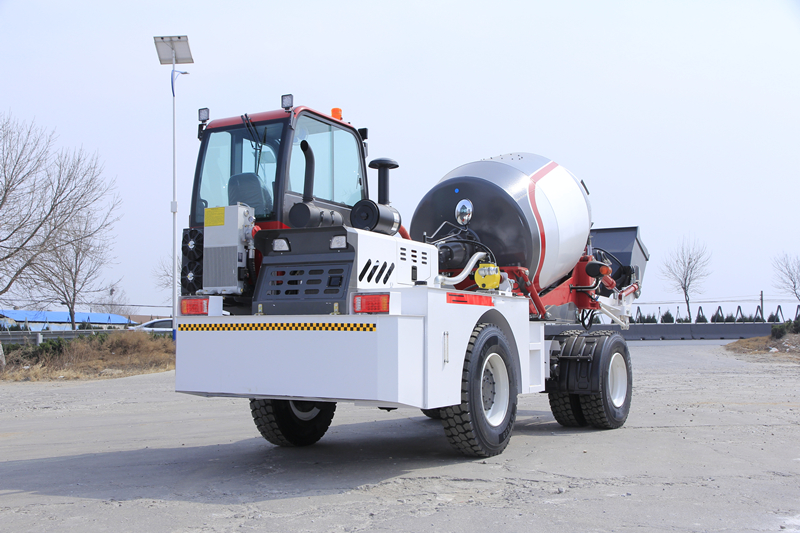

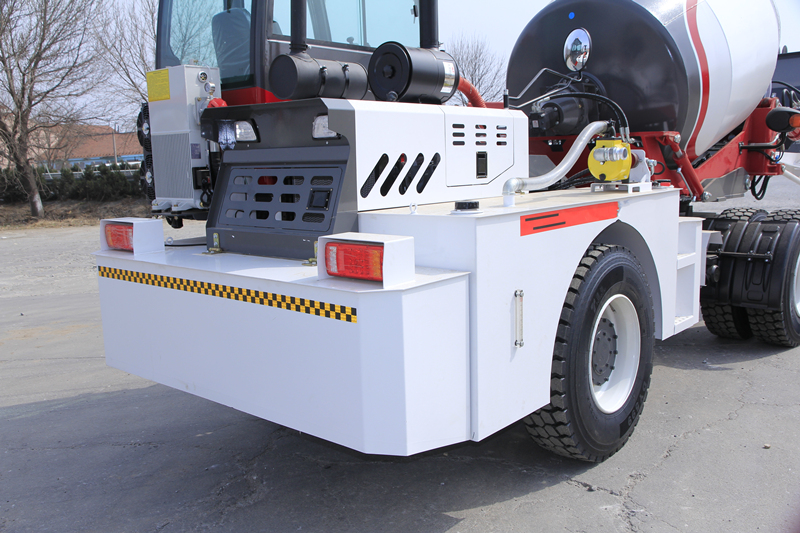

Self Loading Concrete Mixer LZ5500 (5.5m3)

  • Model No.: LZ5500


What is the feature and characteristic of our self loading concrete mixer?

1. Italian technology with improvement provides stable quality and low malfunction rate.

2. The mixing drum uses wear resistant alloy steel for longer service life.

3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.

4. Together with the high accuracy electric weighting unit, it can supply various types of qualified concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.

5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.

6. Self loading concrete mixers adopt 4x4 driving system and off road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.

7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete. Its capacity is up to 200 cbm per day.

8. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of 4-6 workers.

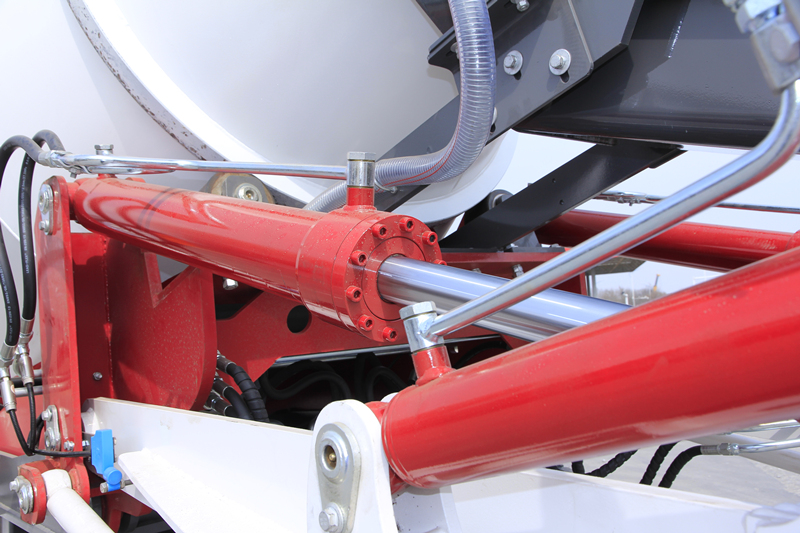

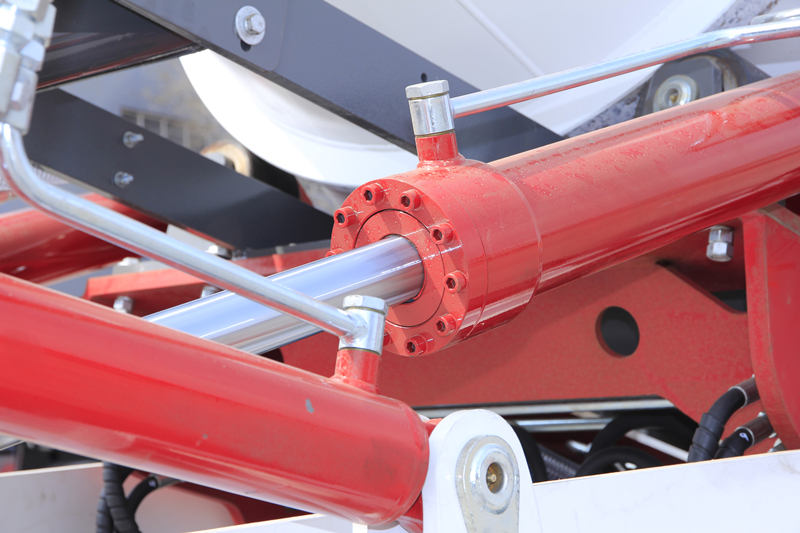

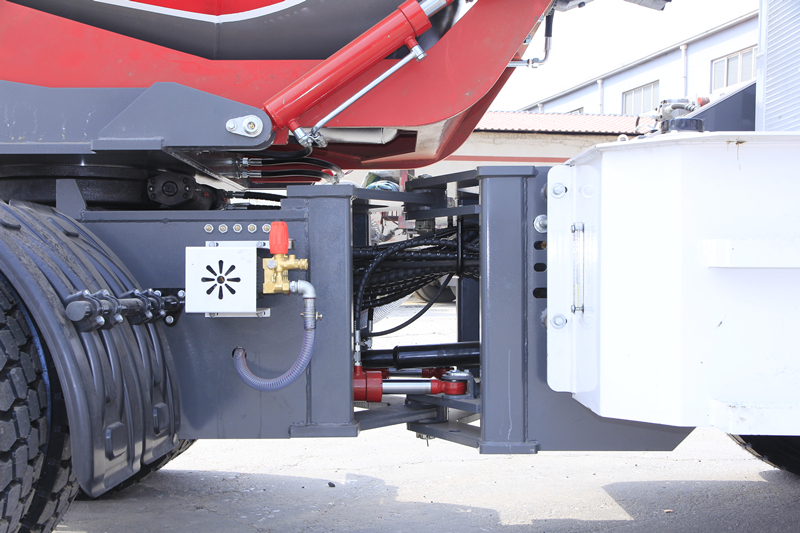

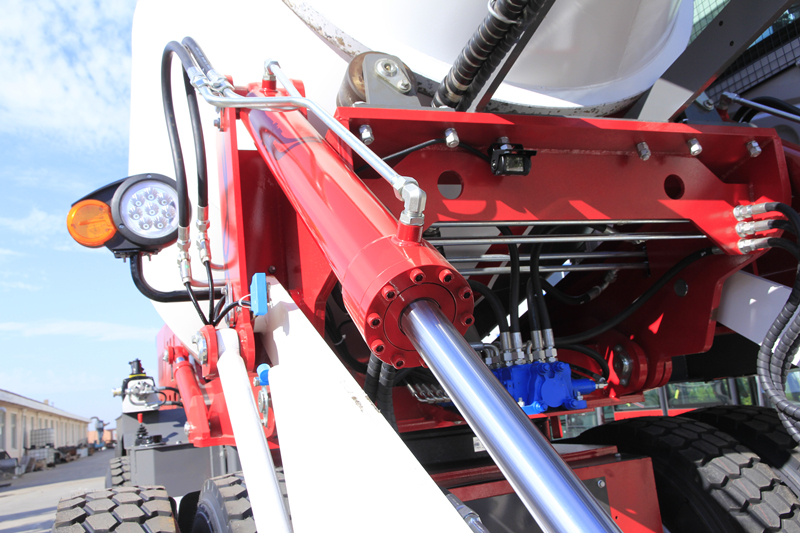

9. Easy operation. The extensive use of hydraulic system makes it easy to operate.

10. Our brand is named chinese famous brand.

11. We have already produced the self loading concrete mixers for more than 20 years.

12. Our factory is the biggest manufacturer of self loading concrete truck in China.

13. We have 17 patents for our self propelled concrete mixer.

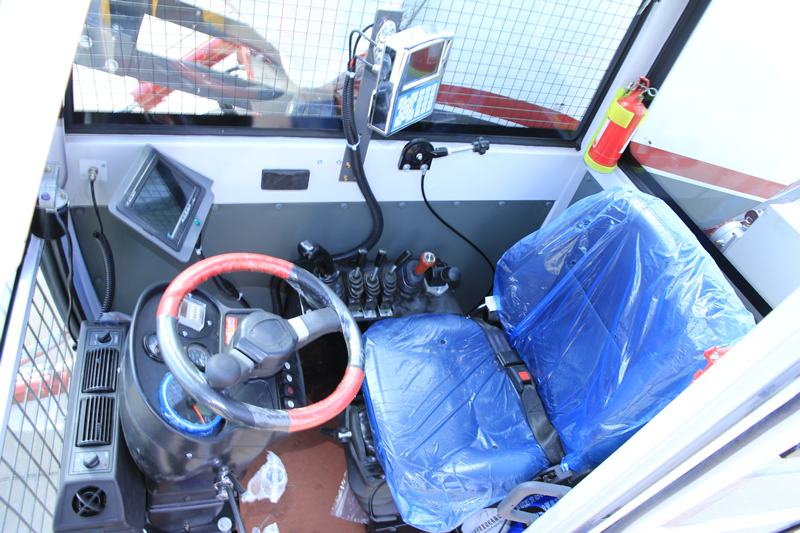

14. Two way driving.Technical Parameters.jpg

Mode No.: LZ5500

Size: 6400x2600x3450mm

Wheelbase: 3200mm

Weight: 9500kg

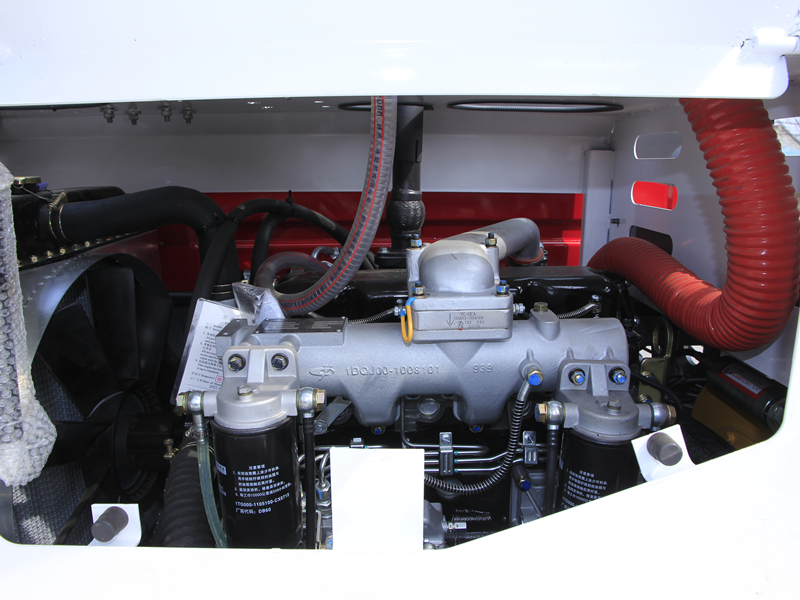

Engine: Yudong 4108 supercharged

Power (KW): 91

Gearbox: 315 sperarated type

Drive axle: 2.5T wheel side reduction speed bridge

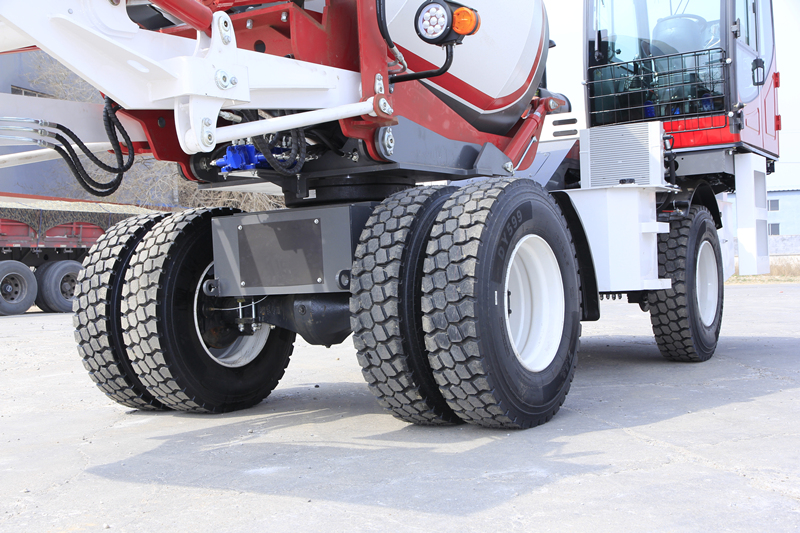

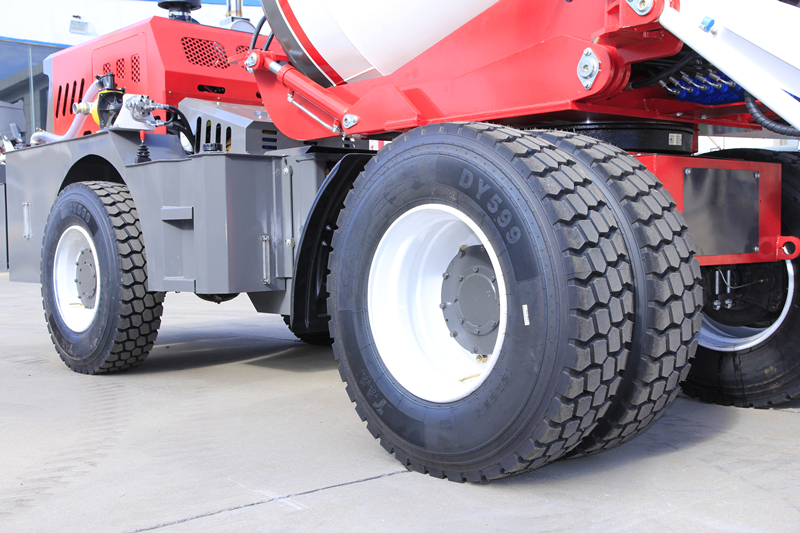

Tyre: 16/70-R22.5 double tire

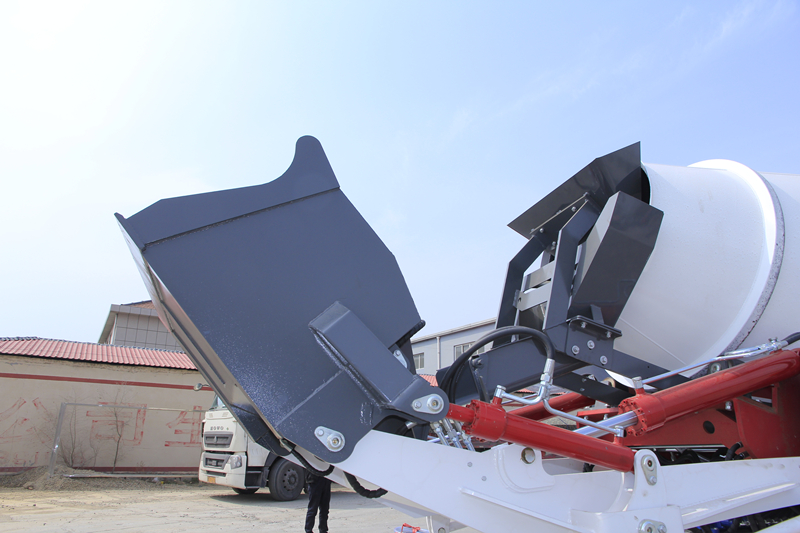

Bucket capacity: 0.65m3

Mixing drum capacity: 5.5m3

Discharge capacity: 3.5m3

Reduction ratio: 1:103

Rotation speed: ≥15 rpm

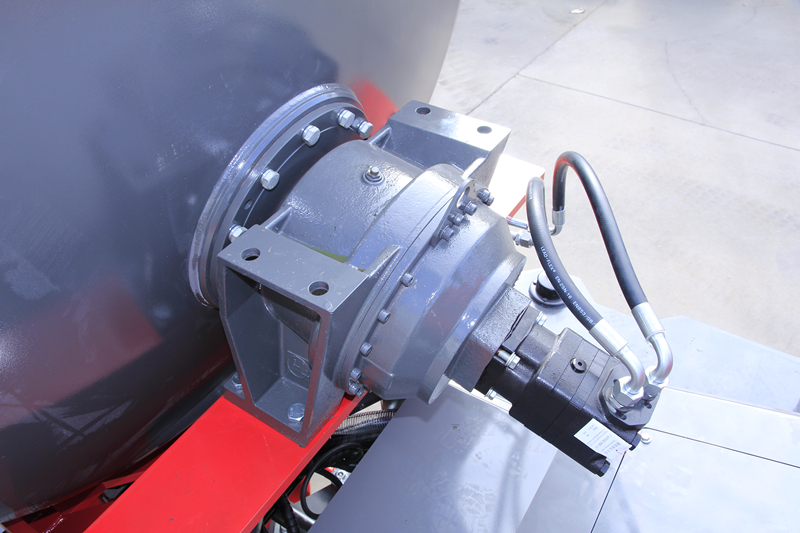

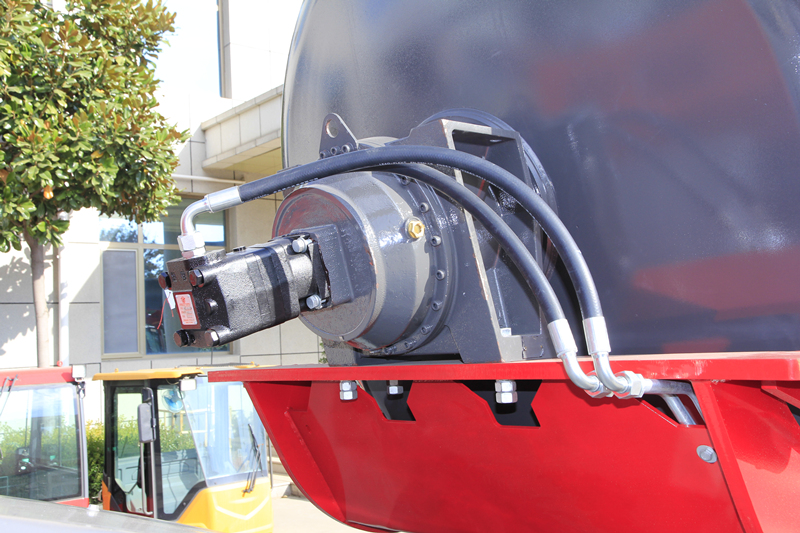

Reducer: HL6F-B2700 domestic

Optional equipment:

1.Cement hopper

2.Air conditioner.

3.High  pressure car wash

4.Hydrualic electronic scale

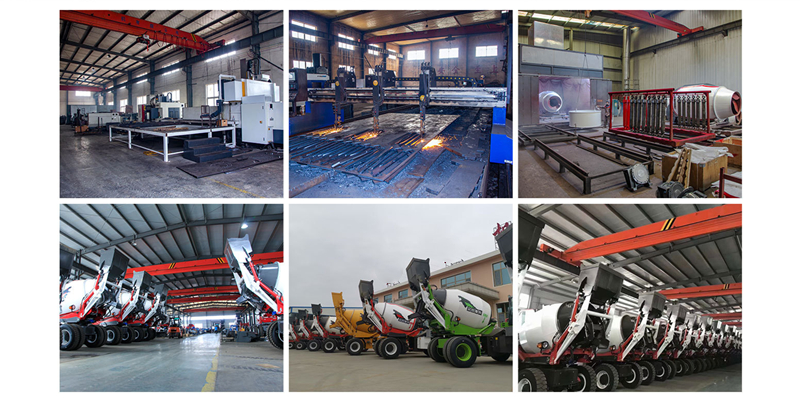

tour our factory.jpgself loading concrete mixer workshops.jpg
