  • Self Loading Concrete Mixer LZ1500 (1.5m3)

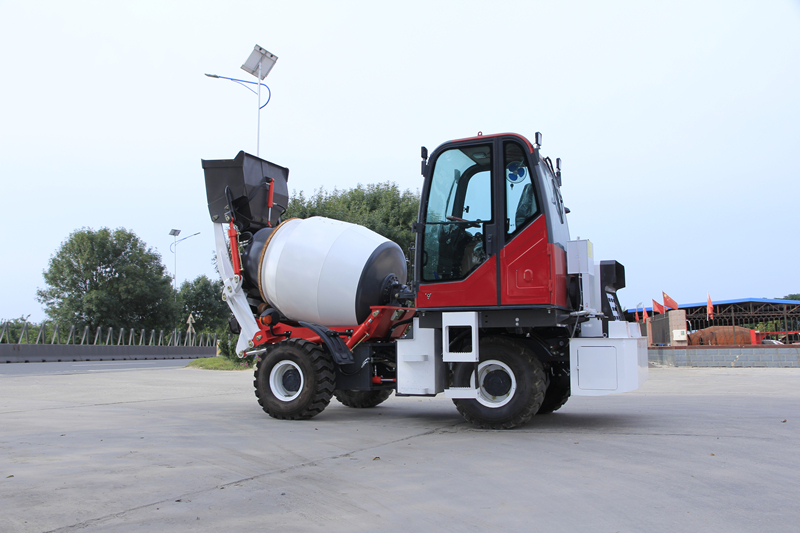

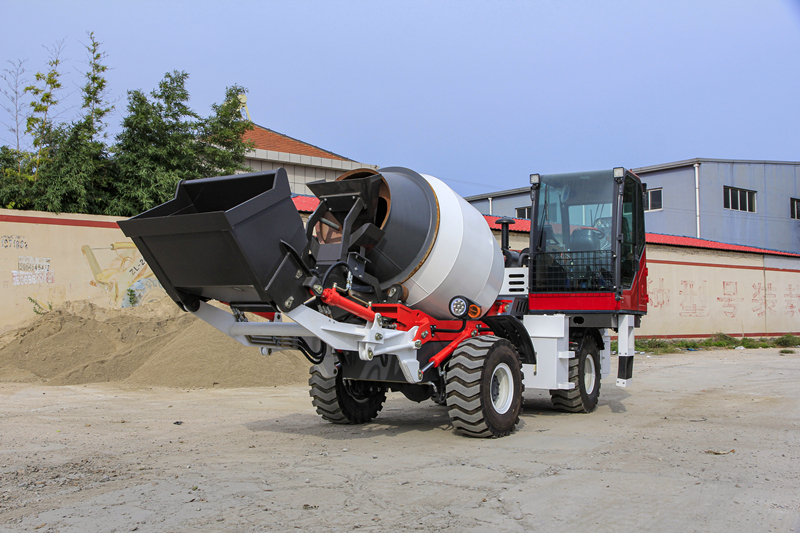

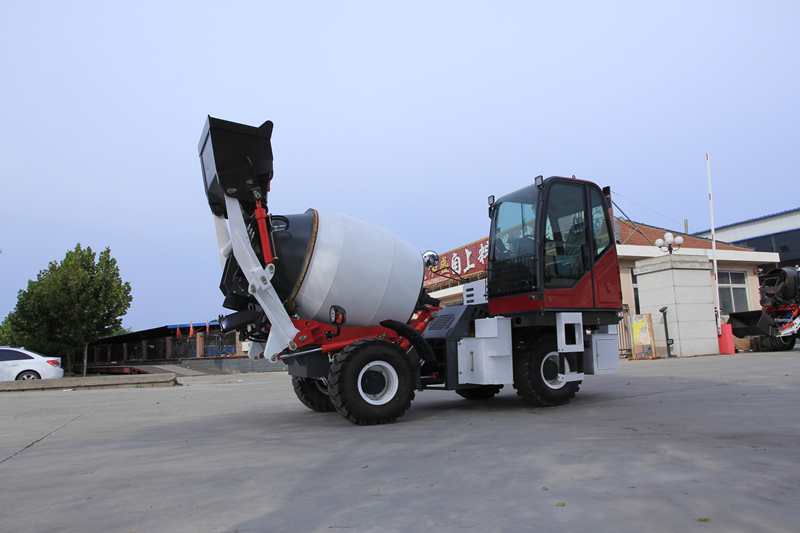

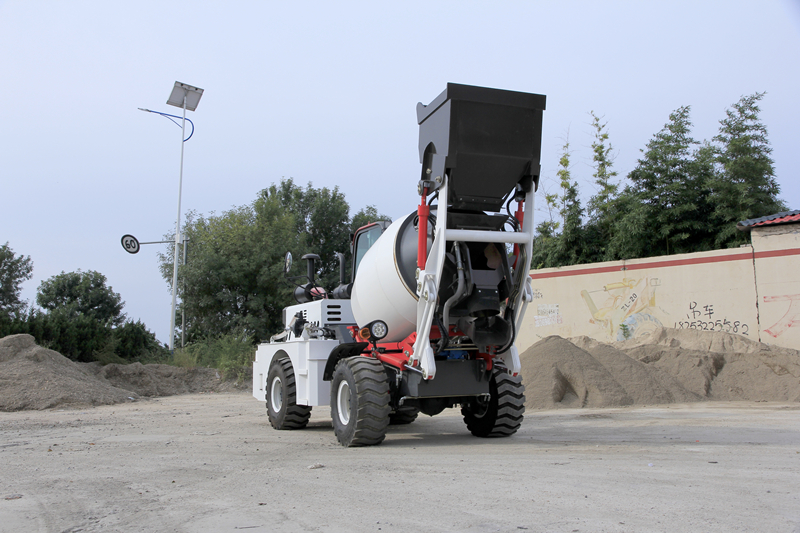

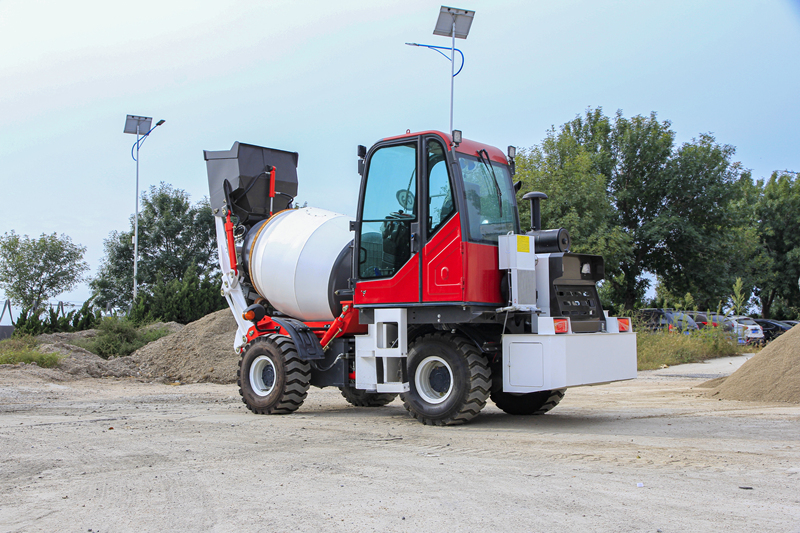

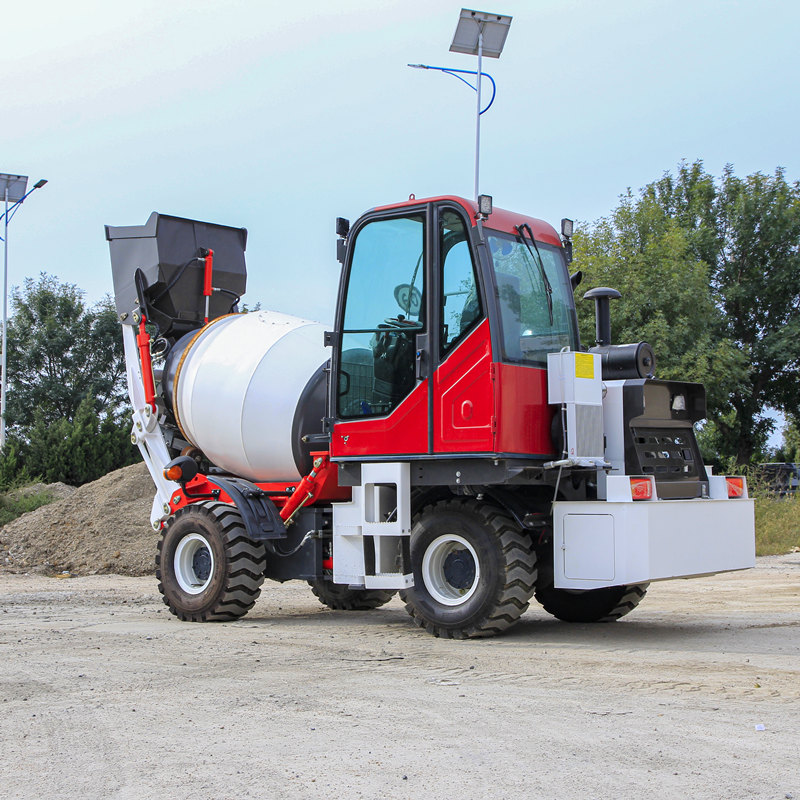

Self Loading Concrete Mixer LZ1500 (1.5m3)

  • Model No.: LZ1500


What is the feature and characteristic of our self loading concrete mixer?

1. Italian technology with improvement provides stable quality and low malfunction rate.

2. The mixing drum uses wear resistant alloy steel for longer service life.

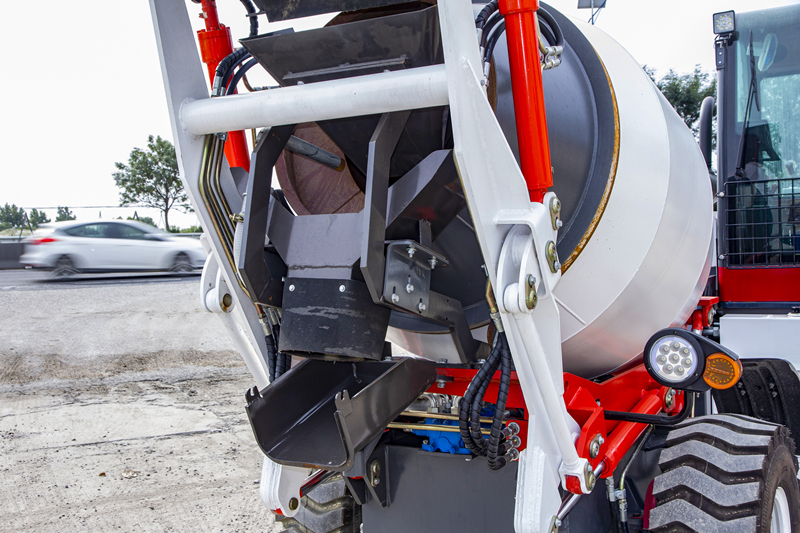

3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.

4. Together with the high accuracy electric weighting unit, it can supply various types of qualified concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.

5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.

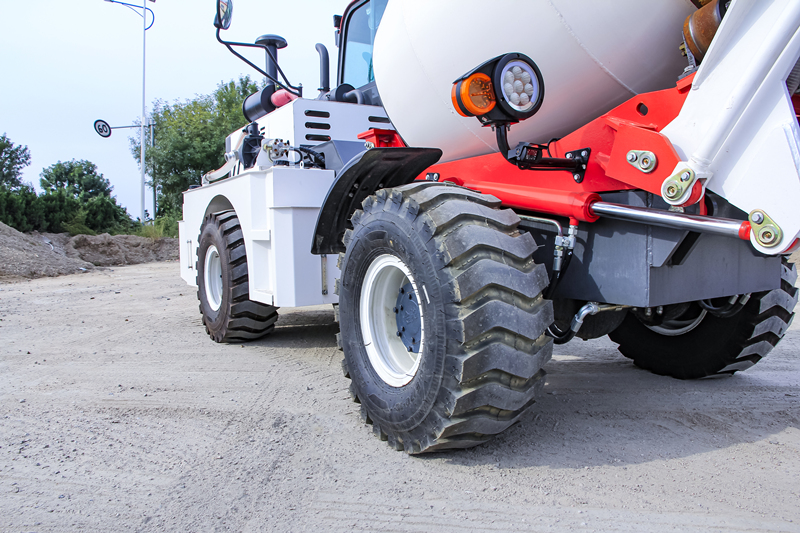

6. Self loading concrete mixers adopt 4x4 driving system and off road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.

7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete. Its capacity is up to 200 cbm per day.

8. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of 4-6 workers.

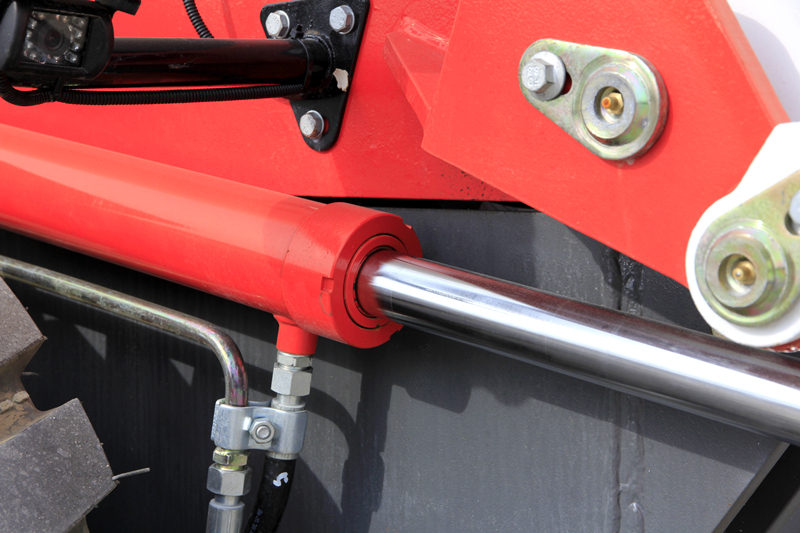

9. Easy operation. The extensive use of hydraulic system makes it easy to operate.

10. Our brand is named chinese famous brand.

11. We have already produced the self loading concrete mixers for more than 20 years.

12. Our factory is the biggest manufacturer of self loading concrete truck in China.

13. We have 17 patents for our self propelled concrete mixer.

Technical Parameters.jpg

Mode No.: LZ1500

Size: 4750x2200x2850mm

Wheel base: 2180mm

Weight: 4500kg

Engine: Yuchai 490, supercharged

Power (KW): 55

Gearbox: 265 integral

Drive axle: 1.8T wheel reduction speed bridge

Tyre: 20.5-16

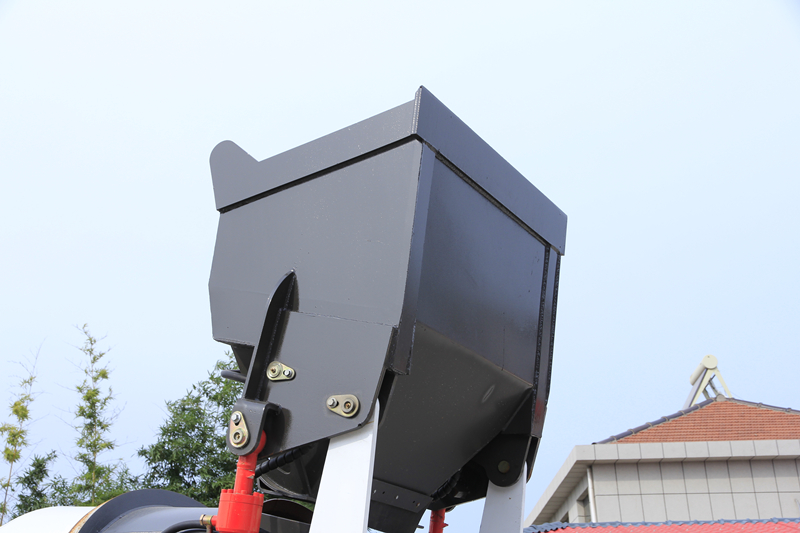

Bucket capacity: 0.35m3

Mixing drum capacity: 1.5m3

Discharge capacity: 1m3

Reduction ratio: 1:24

Rotation speed: ≥15 rpm

Reducer: made in China

Optional equipment:

1.Cement hopper

2.Air conditioner.

3.High  pressure car wash

4.Hydrualic electronic scale














tour our factory.jpg

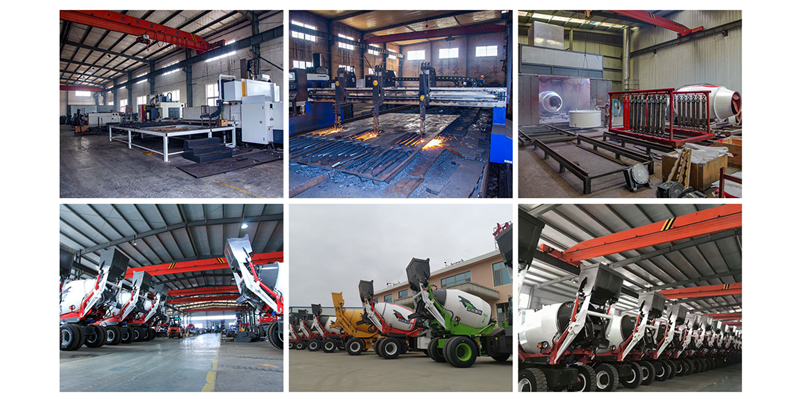

self loading concrete mixer workshops.jpg
