16Ft Family Off Road Caravan (4 Berth)

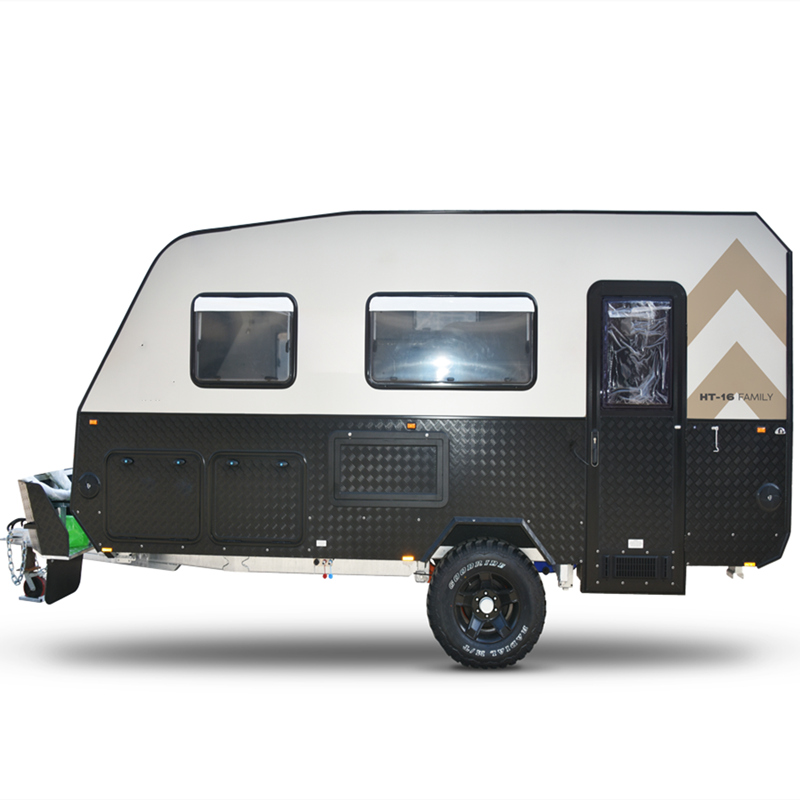

HT-16 Family 16ft 4-5 Berth Hard-Top Off-Road Caravan

LZM is an experienced off-road caravan manufacturer and exporter in China, supplying caravans to international markets including Australia, New Zealand and the United States. Our factory manufactures more than 3,000 off-road caravans annually for these markets.

The HT-16 Family is a 16ft hard-top off-road caravan designed for family touring, camping and off-grid travel. With sleeping capacity for 4 or 5 people, it combines a fixed hard-top body, expandable living space, independent suspension, an internal ensuite, external stainless steel kitchen, 200Ah AGM battery capacity, 300W solar power and off-road capability.

Model: HT-16 Family

Dimensions & Weight

• Closed Size with AC: 2350mm W × 6640mm L × 3000mm H

• Opened Size with AC: 5400mm W × 6640mm L × 3000mm H

• Style: 16ft Hard-Top Off-Road Caravan

• Berth: 4 or 5

• Towball Weight: Approx. 196kg

• Tare Weight: Approx. 2345kg

• ATM: 3000kg

Chassis, Suspension & Towing

• Chassis: 150mm × 50mm × 3mm

• Drawbar: 150mm × 50mm × 4mm

• Body Construction: Aluminium composite panels with fully welded frame and chassis

• Finish: Galvanised chassis with aluminium composite panels

• Stone Guard: Aluminium and mesh

• Suspension: Independent trailing-arm suspension with 4 shock absorbers and coil springs

• Wheels & Tyres: 265/75 R16 Goodride radial mud-terrain tyres

• Coupling: DO35

• Brakes: 12-inch electric brakes with handbrake and breakaway system

• Stabiliser Legs: 4 heavy-duty lockable and adjustable drop-down legs

• Light Connection Plug: 12-pin flat as standard; 7-pin round or 7-pin flat connection available

Kitchen, Water & Bathroom

• External Kitchen: 304-grade stainless steel kitchen with 4-burner gas cooktop and sink with washboard

• Fresh Water: 2 × 80L tanks, 160L total

• Grey Water: 80L tank

• Water Delivery: 12V electric pump

• Toilet / Ensuite: Dometic cassette toilet

• Gas Cylinder Holders: 2 × 9kg

• Jerry Can Holders: 2 × 20L

Electrical & Off-Grid Equipment

• Battery: 2 × 100Ah deep-cycle AGM batteries, 200Ah total

• Solar: 2 × 150W solar panels, 300W total

• Charger: Projecta 35A 7-stage fully automatic 240V charger

• Booster Charger: Projecta IDC 25-9-32V 25A 3-stage charger

• Inverter: 1000W modified sine-wave 240V inverter

• Outlets: Multiple 12V and USB outlets

Interior & Exterior Equipment

• Awning: 4m wide, 12V electric open/close

• Mattress: 200mm custom Queen innerspring mattress

• Sound System: Kenwood head unit with internal and external speakers

• Optional Equipment: Air conditioner, refrigerator and diesel heater

Weight Note: All stated weights exclude gas bottles, jerry cans, annex walls and annex roof.
